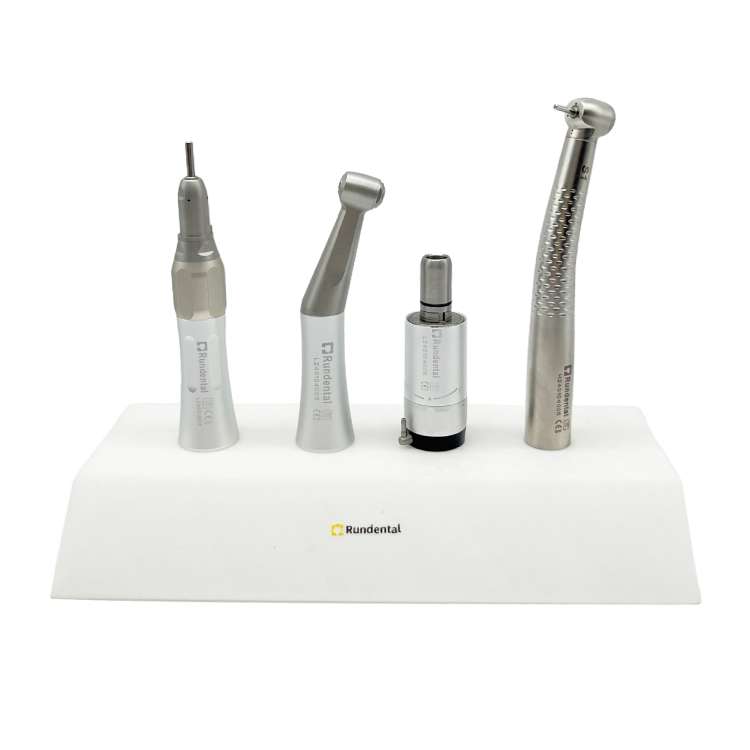

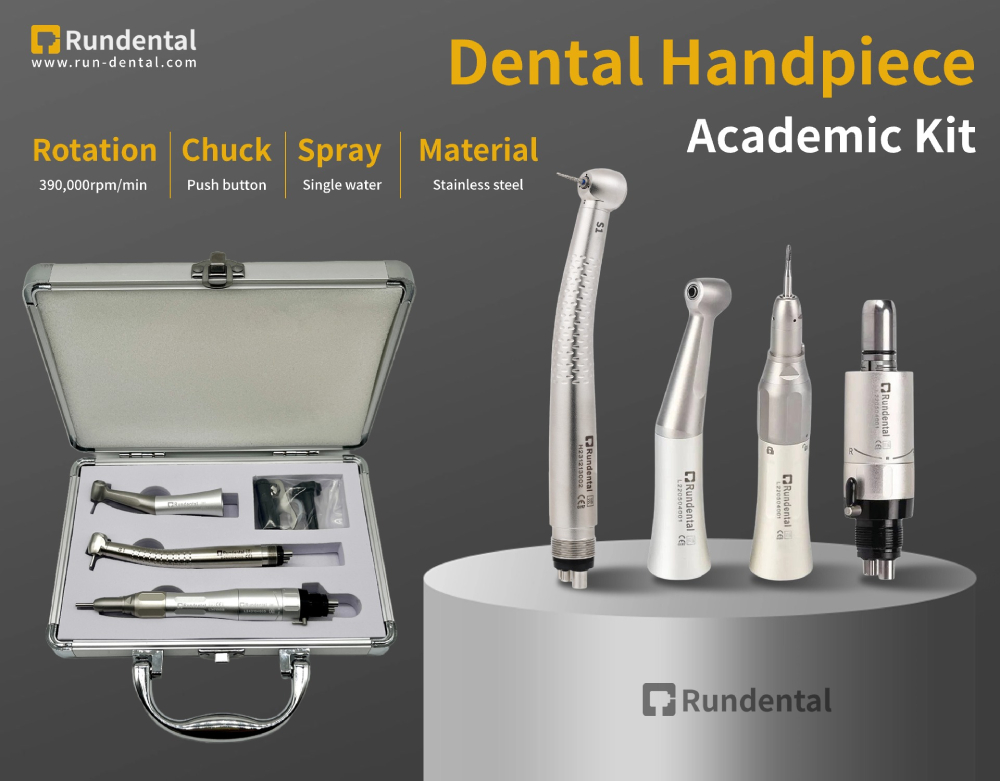

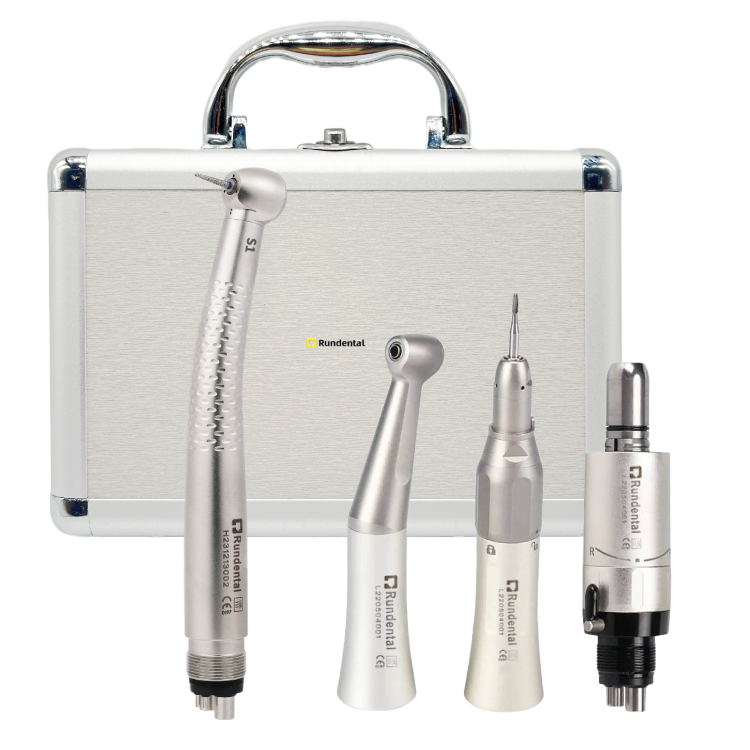

Complete Dental Handpiece Kit for Students with Turbine Handpiece and FX Low speed kit
Head: Standard
Chuck: Push button
Noise: Less than 65dB
Bearing: Ceramic bearing
Water spray: Single water
Product Details
Model: K1
Photo Album

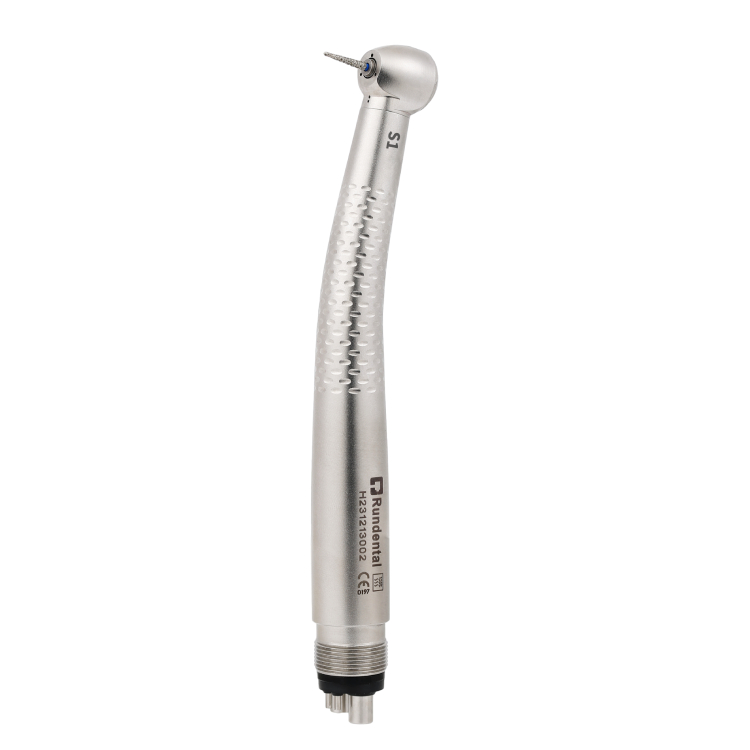

Technical Parameter of High Speed Handpiece
| Rotation speed | 350,000-380,000rpm/min |
| Head Type | Standard head |
| Power | 20W |
| Bearing type | Ceramic bearing with cover |
| Air pressure | 0.2-0.23MPa |
| Water flow | 90-110min/ml |
| Chuck type | Push button |
| Water spray | Single water spray |
| Surface treatment | Non-slip design |
| Material | Stainless Steel |
| Bur applicable | ø1.59-1.6mm |
| Noise | ≤ 65dB |

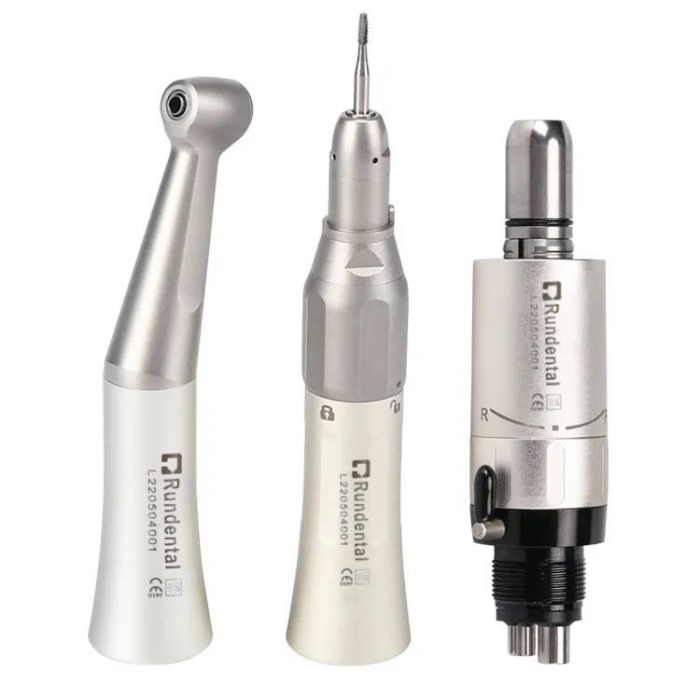

Technical Parameter of FX Air Motor
| Rotation speed | 20,000rpm/min |
| Gear ratio | 1:1 direct drive |
| Motor type | Shorter and lighter |
| Air pressure | 0.25-0.3MPa |
| Water spray | External water spray |
| Material | Copper |
| Noise | ≤ 65dB |
Technical Parameter of Contra Angle
| Rotation speed: | 20,000rpm/min |
| Gear ratio | 1:1 direct drive |
| Chuck type | Push contra angle |
| Head type | One-piece molding |
| Water spray | External water spray |
| Air pressure | 0.25-0.3MPa |
| Material | Copper |
| Bur applicable | ø2.35mm |
| Compatible | E-type ISO motors |
| Noise | ≤ 65dB |
Technical Parameter of Straight Handpiece
| Rotation speed | 20,000rpm/min |
| Gear ratio | 1:1 direct drive |
| Water spray | External water spray |
| Air pressure | 0.25-0.3MPa |
| Material | Copper |
| Bur applicable | ø2.35mm |
| Compatible | E-type ISO motors |
| Noise | ≤ 65dB |
Features
1.Stainless steel material of high speed dental handpiece
The dental drills of high speed is made of stainless steel,which is drop-resistant,it means that when the dental handpiece drops on the ground, the head will not easily to deform.Thus, the cartridge of dental handpiece is well protected,makes it more durable.

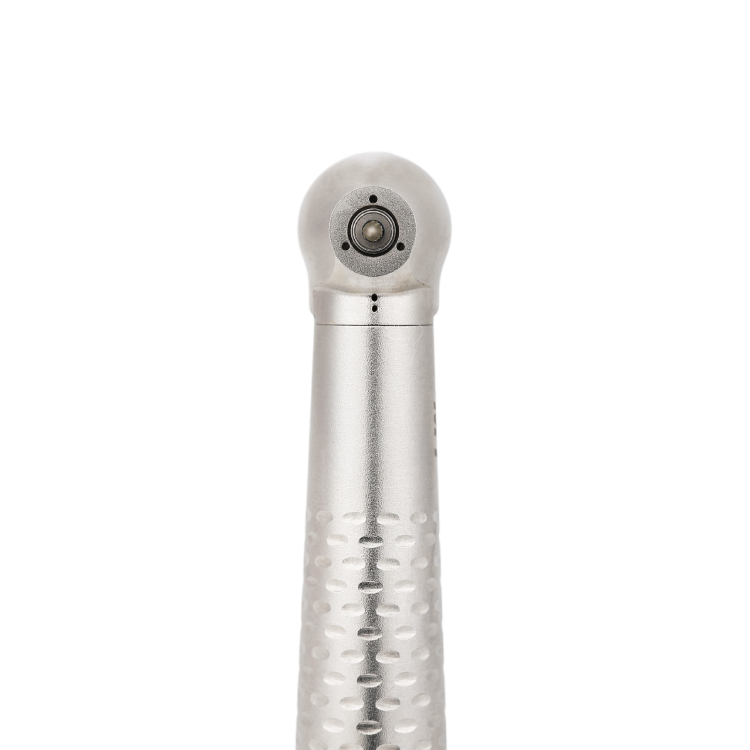

2.One-piece molding head of the air turbine and contra angle
Better roundness, vibration-free, and avoid water and air leaks.
3.Push button chuck
Push button chuck, more easier to operate.
4.German dynamic balance
Cartriage is compatible with Panamx type,tested by German dynamic balance machine,less vibration,less noise.
5.Unique Design of Grip Surface
Scratch-resistant and Anti-slip Grip Surface, Safe and Not tiring.
6.Precise single water spray
Single water spray with perfect cooling effect,which can quickly cool the heat generated in the treatment, reducing the pain of the patients and helping the dentists to operate smoothly.
7.Low noise and quite design
Noise less than 65dB,which can reduce the fear of patients and provide a humanized experience.
8.Can be 135℃ sterilized
Suitable for high temperature steam at 135℃,easy for disinfection.
