E Type Dental Electric Motor with 1:1 LED Contra Angle and 1:5 Inreasing Handpiece
Speed options: 1:5/1:1/16:1
Motor type: Brushless motor
Connector: E-type Standsrd
Max.speed: 20,000rpm/min
Product Details
Model name: RD-EM
Technical Parameter
| Motor speed | 2,000-40,000rpm/min |
| Handpiece speed | 10,000-200,000rpm/min |
| Speed ratio | 1:5/1:1/16:1 |
| Torque | 3.5 N.cm |
| Power supply | AC 100-240V 50/60Hz |
| Type of motor | Brushless motor |
| Water spray | Internal water spray |
| Working air pressure | 0.25-0.4MPa |
| Illuminate | LED light |
| Connector | E-type ISO Standsrd |
Photo Album
Features
1.Low vibration
The low vibration provides more precise tooth preparation.
2.Internal water spray
With internal irrigation,when the temperature is increasing,can provide effective cooling system.

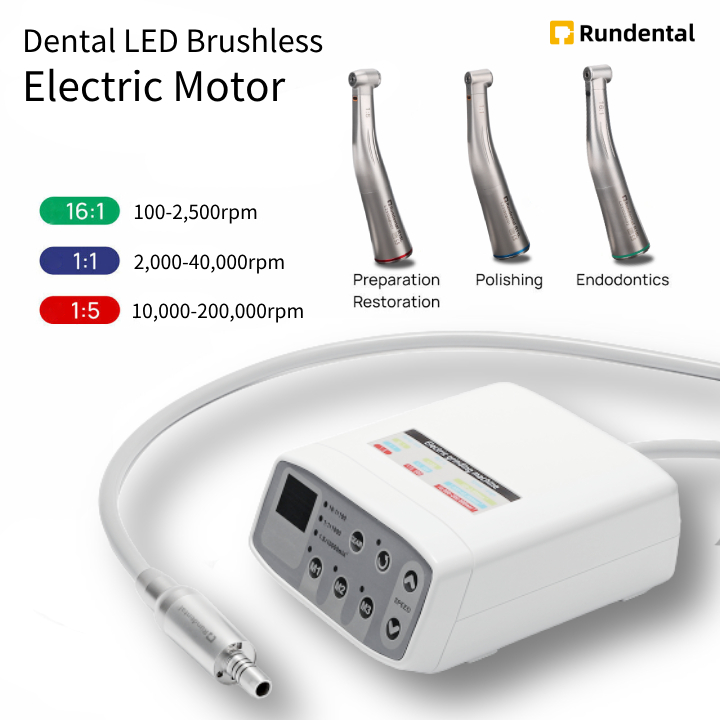

3.Used for different types of dental contra angles
It can be used for teeth preparation or restoration(1:5),polishing(1:1) and endodontics(16:1),etc.

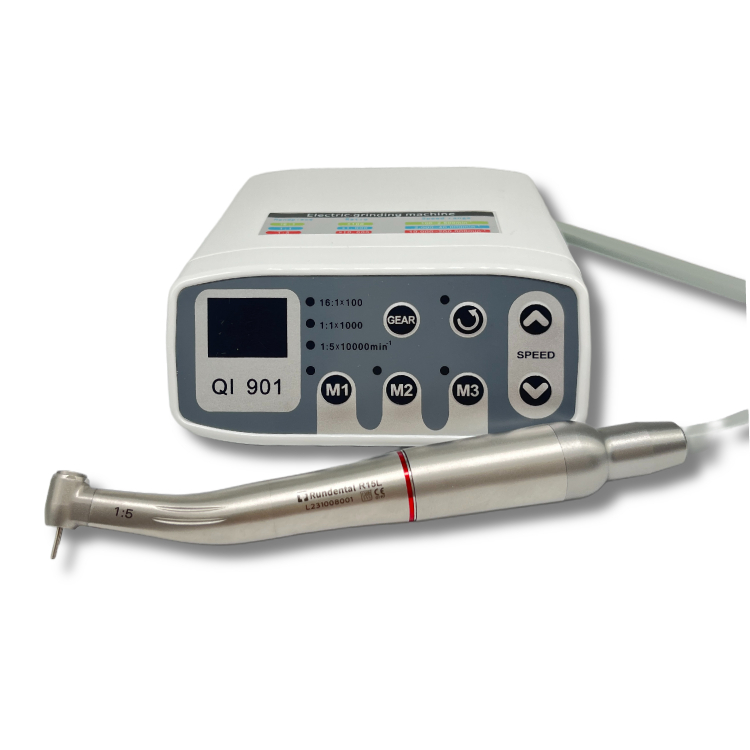

Preparation or restoration with 1:5 fiber optic contra angle handpiece
With increasing speed handpiece can realize fast cutting and hole preparation, which greatly improves the dentist’s working efficiency and reduces the fatigue of long time working.
Polishing process with 1:1 fiber optic contra angle handpiece
When use the 1:1 mode, the handpiece speed is stable, which can greatly avoid the mistaken grinding of plastic materials and make the teeth grinding more fine.
Endodontics treatment with 16:1 fiber optic contra angle handpiece
The 16:1 mode connects with the contra angle, the rotation speed of the turning bur is smoother, and the root canal treatment is safer for removing caries and decay
4.Low noise and quiet operation
Even when the contra angle handpiece is cutting teeth at high speeds, it is quiet and provides a comfortable experience for patients and healthcare professionals.
