Dental Wireless Multi Wavelength One Second Curing Light Q7
Material: Plastic and steel
Power output: DC 5V/1A
Battery: 2600mAh
wavelength range:385-515nm
Light intensity:1000mW/c㎡～2500mW/c㎡
Solidification time and depth:1s/2mm
Product Details
Model Name: Q7
Technical parameter
| Type | 1s,3s fast cure |
| Input | 100-240VAC 50HZ/60HZ 0.4A |
| Output | DC 5V/1.0A |
| Light intensity | 1000mW/c㎡～2500mW/c㎡ |
| Wavelength range | 385nm~515nm |
| Material | Plastic and steel, Metal head |
| LED light | U.S. imported LED light |
| Color | White/purple/blue/black |
| Battery capacity | 2600mAh |
| Optional working time | 1s,3s,5s,10s,15s,20s |
| Application | Dental clinic and dental hospital |
| 4 Curing modes | Turbo/Full/Ramp/Pulse |
| Turbo | 2500mW/c㎡ |
| Full | 1500mW/c㎡ |
| Ramp | 1500mW/c㎡ |
| Pulse | 1500mW/c㎡ |
Photo Album

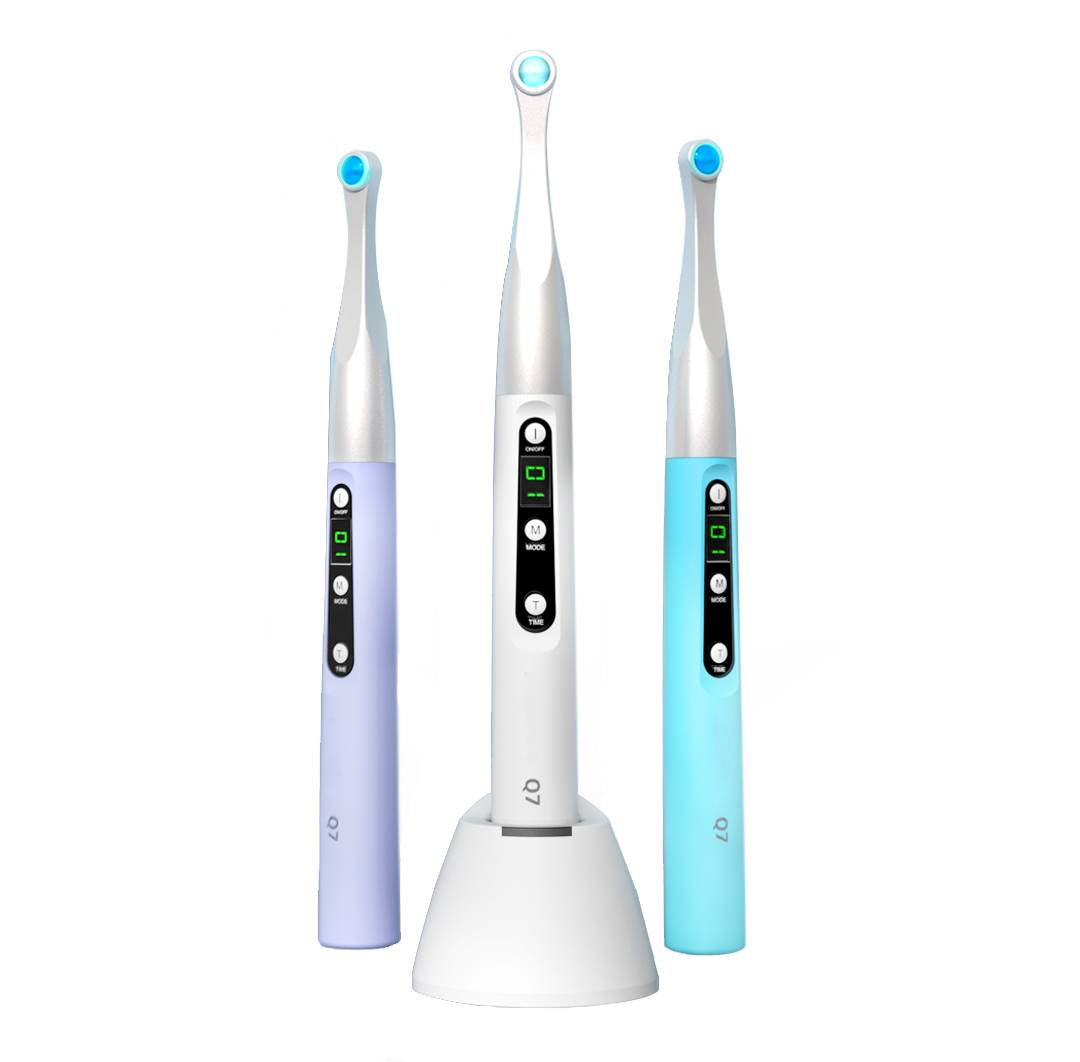

1 second curing light

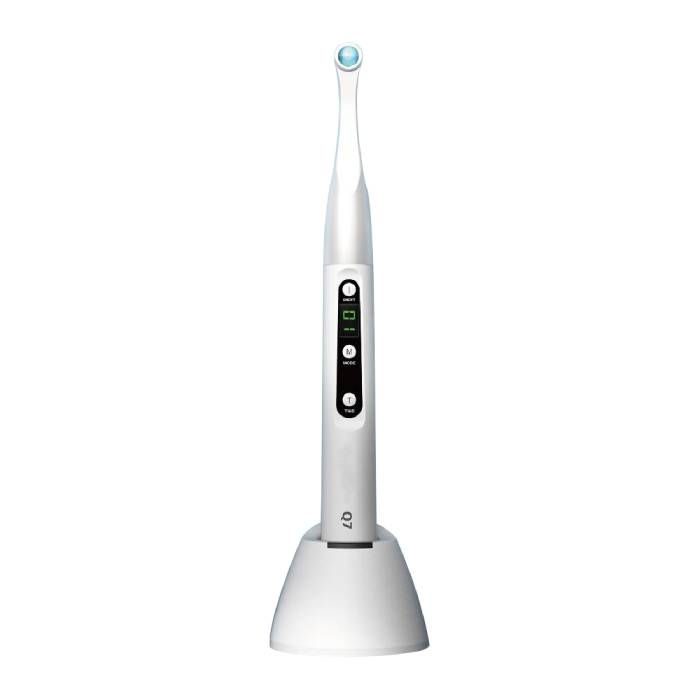

front side of 1 second curing light

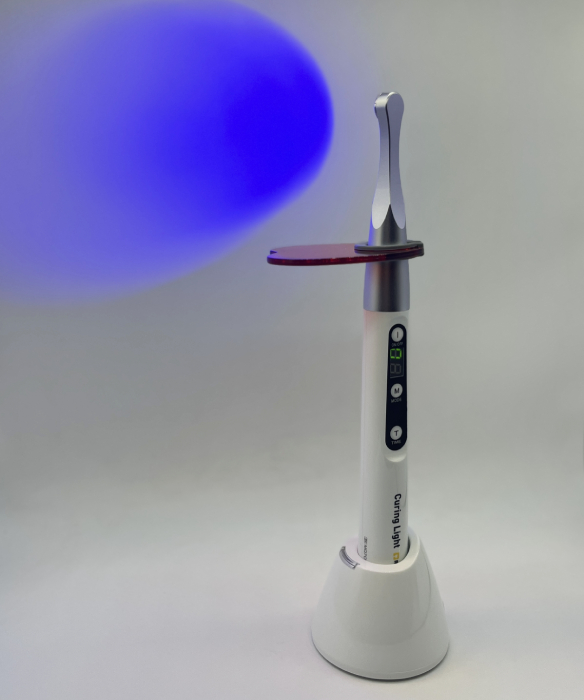

Big power intensity of Q7

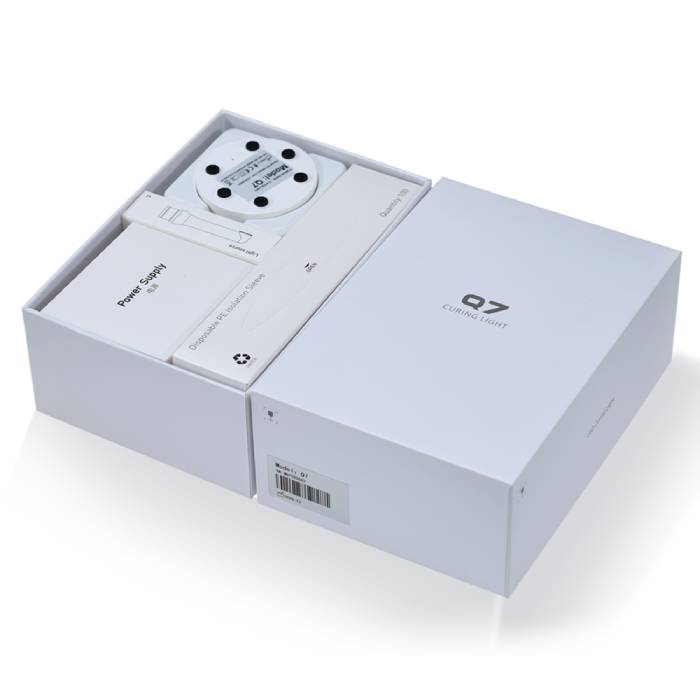

packing of 1 second curing light

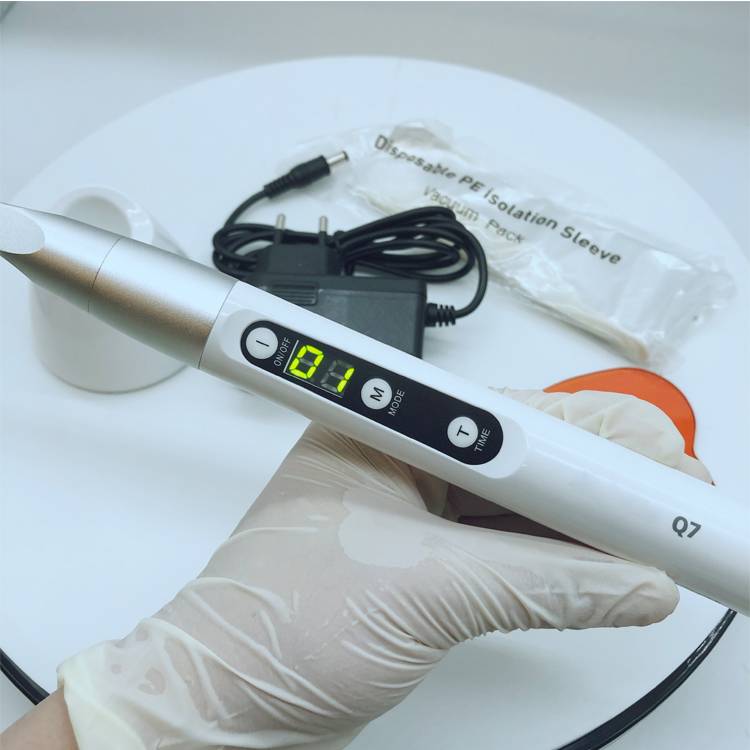

handle of 1 second curing light
packing details of 1 second curing light
Features

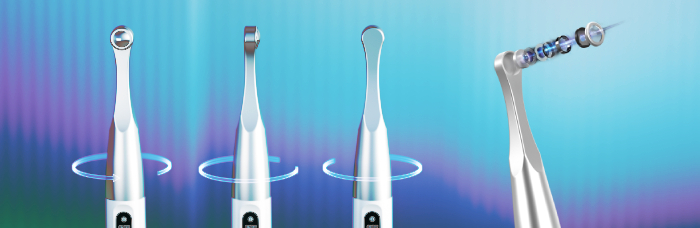

360°rotation metal head
- Metal head, durable and crack-free.
- 360°rotation easily reach every angle.

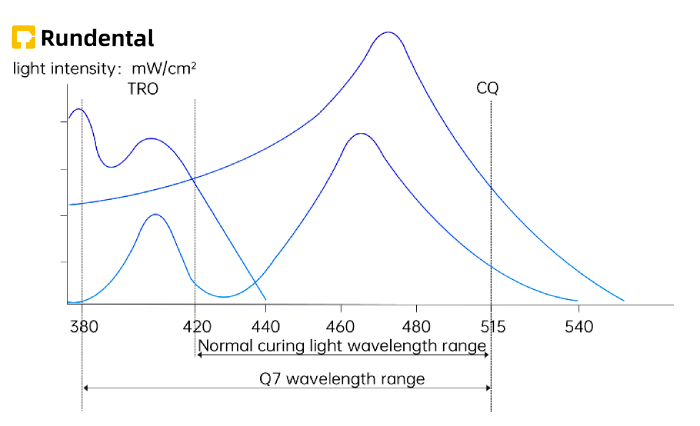

Upgrade wide spectrum
New generation upgraded LEDs
A new generation of upgraded LEDs with multiple wavelengths produces high intensity light from 385nm to 515nm, which is perfect for polymerizing all light-curing dental materials.
Excellent sophisticated optics
Q7 1 second curing light uses sophisticated optics with excellent collimation on a 10 mm lens to provide optimal and consistent collimated power.

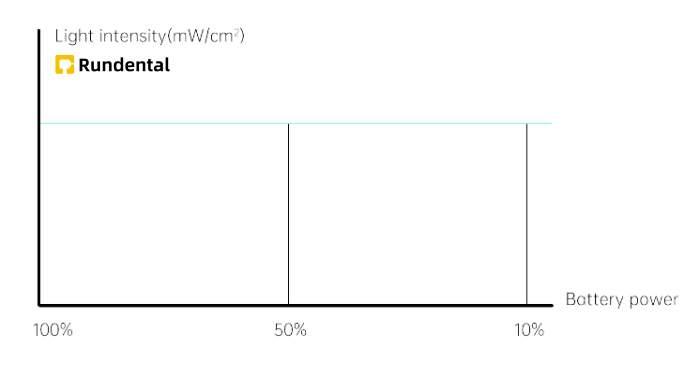

Constant light intensity output
Maintain stable light intensity while power drops lower.
Four powerful curing modes
P1: Turbo
- 2300~2500mW/c㎡.
- Curing time: 1s or 3s.
- For ceramic ackets,veneer bonding etc.
P2: Full
- 1400~1600mW/c㎡.
- Curing time: 5s/10s/15s/20s.
- For general application.
P3: Ramp
- 1400~1600mW/c㎡.
- First 0s~5s range from 0 to 1500mmW/c㎡.
- Next 5s,10s,15s range from 1400 to 1600mWc㎡.
- For the patients who are sensitive to the heat.
P4: Pulse
- 1400~1600mW/c㎡.
- Curing time: 5s/10s/15s/20s(with 1 second blink in between)
- For the patients who are sensitive to the heat.

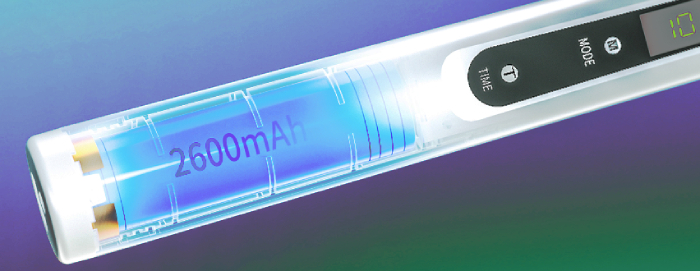

Large battery capacity
- Big battery capacity,2600mAh
- Over 1300 circles under 10 seconds mode.
Automatic lamp cap detectionLamp holder self-test
The main unit will detect the light quide and stop the “Er”flashing if the guideis connected wellor the main unit will close down after 10s flashing.

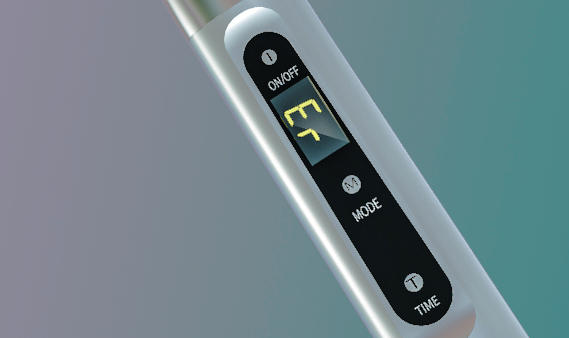

Battery performance detection
When detect an inconstant power output from battery,the mainunit will stop working to warm with flashing”Er”.
Charging demonstration
White light means powered on blue light means charging.
Color options
Blue/Purple/White/Black
