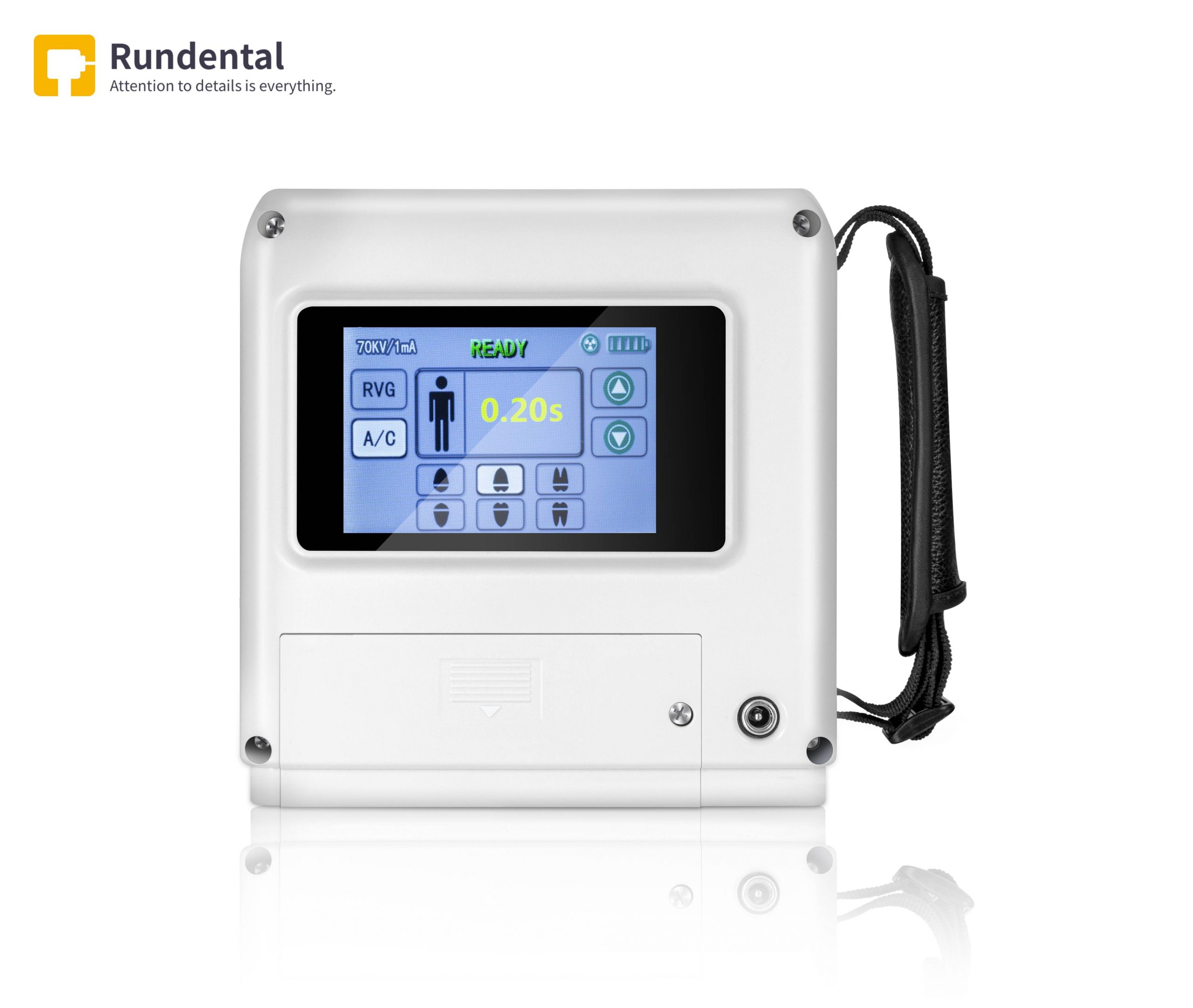

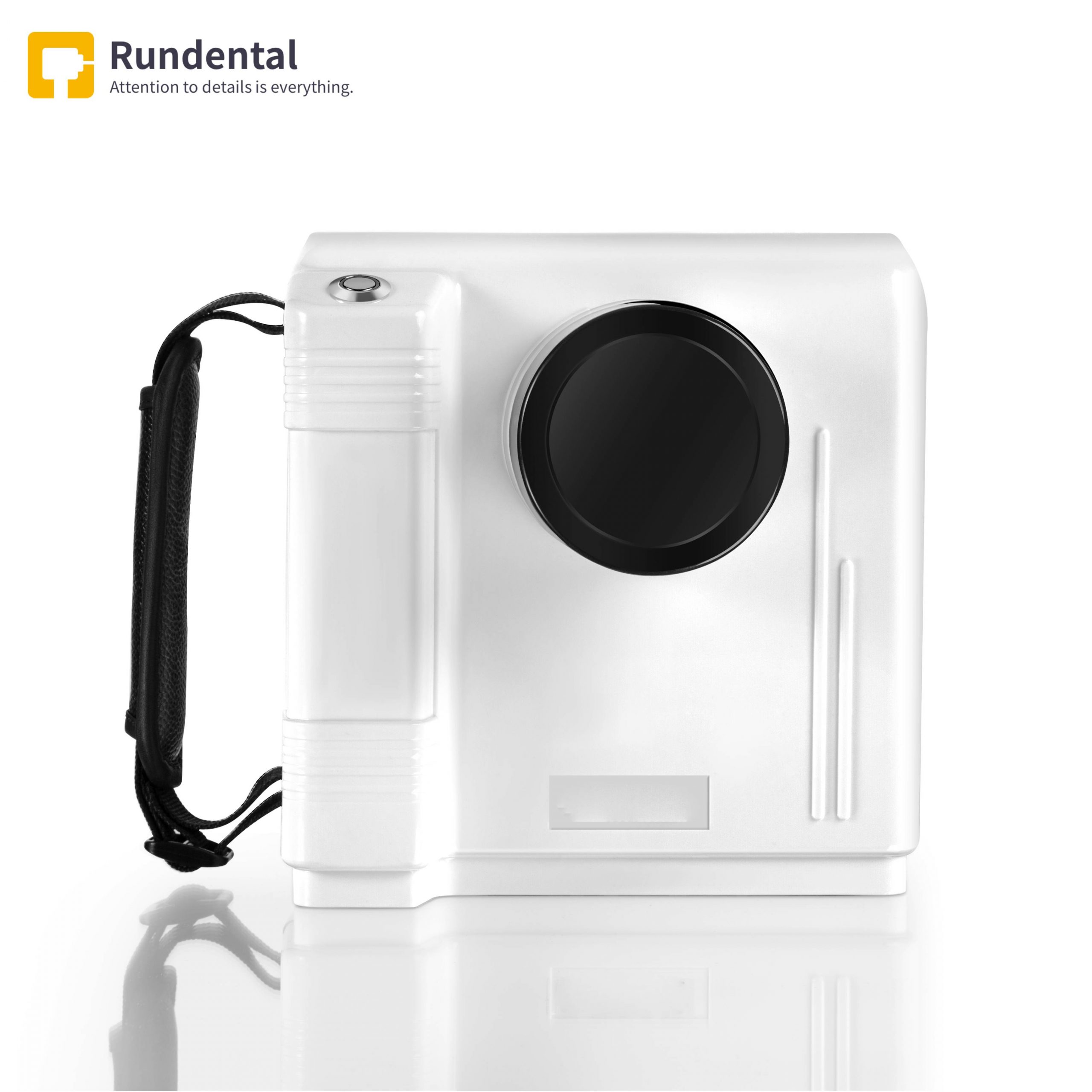

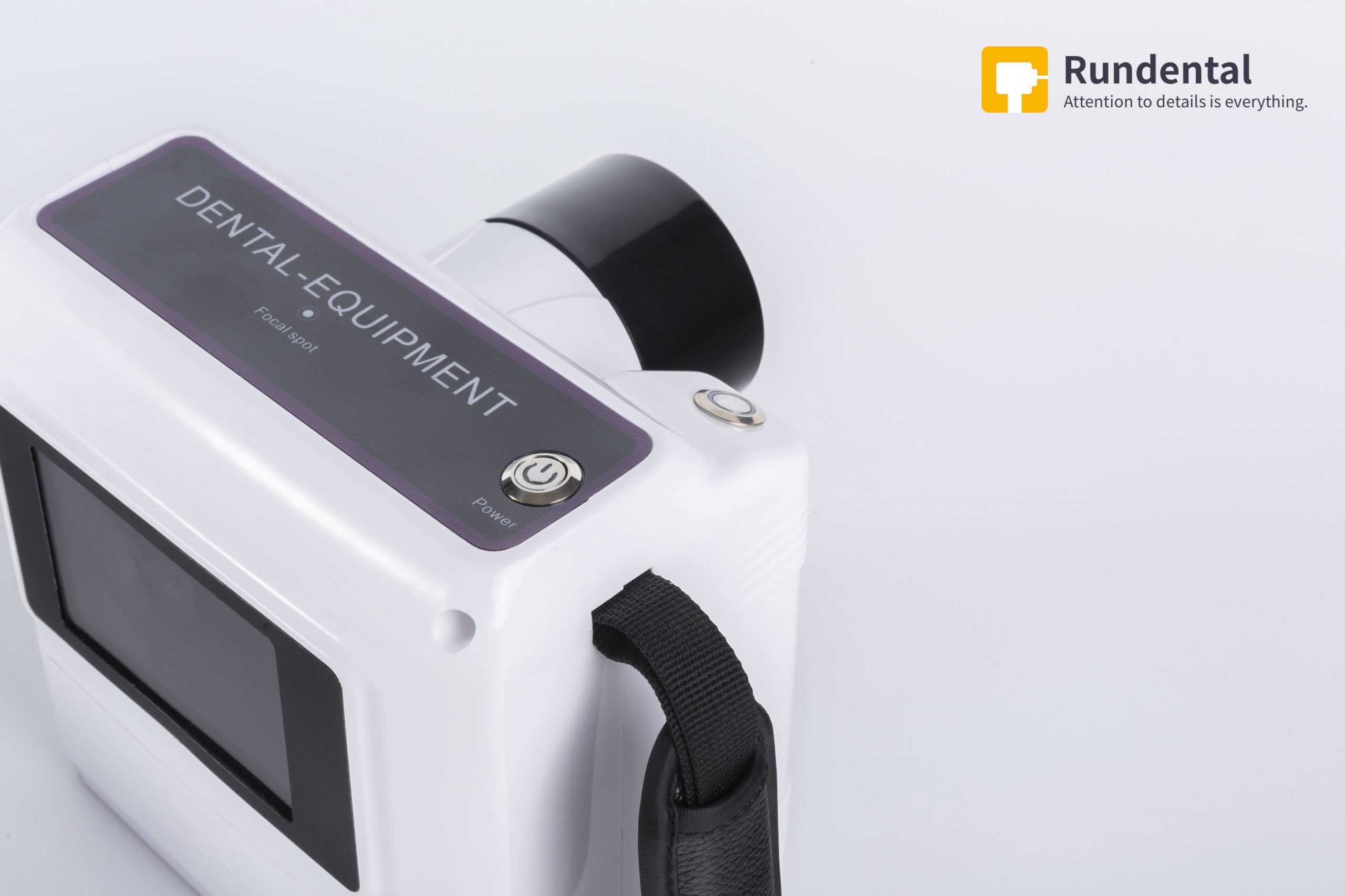

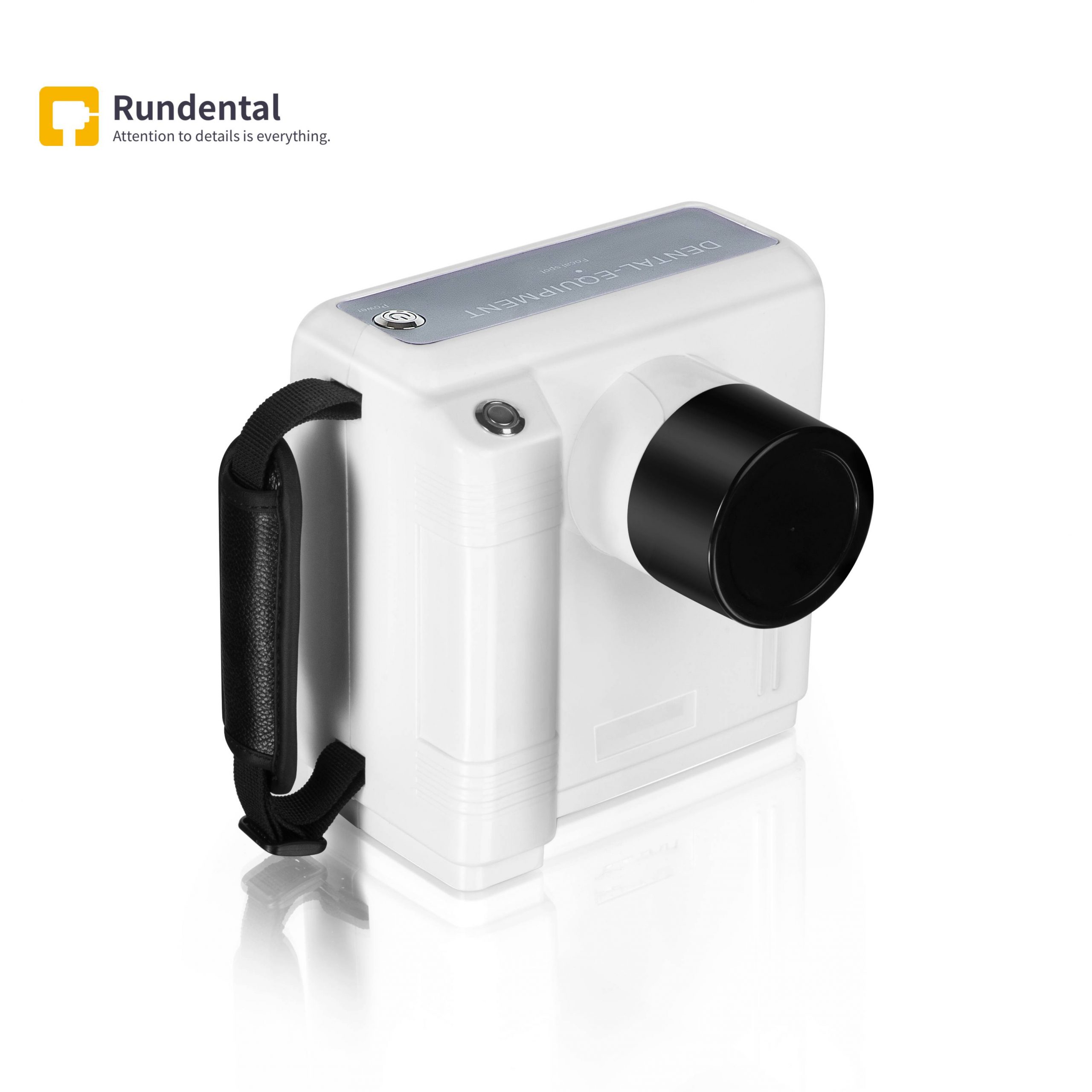

New Dental Portable X-Ray Unit 70KV/2mA with LCD Touch Screen R20
Tube KV/mA: 70KV/2mA
Exposure time: 0.1s~0.2s
Tbe focal size: 0.3mm
Battery: replaceable
Display mode: LCD touch screen
Product Details
Model Name: R20
Specification
| Tube voltage | 60KV |
| Frequency | 80KHz |
| Tube current | 2.0mA |
| Exposure time | 0.1-2.0s |
| Anode Target Angle | 12° |
| Total Filtration | 1.75mmA+1.0mmAl |
| Battery capacity | DC14.8V 2200mAh |
| Leakage Radiation under Loading | <0.01mgy/h |
| Leakage radiation in unloaded state | <1μgy/h |
| Tube Focal Spot size | 0.3mm |
| Ambient temperature | 5C-40C |
| Relative temperature | <75%RH |
| Net weight | 2.0KG |
| Size of package | 310*280*220mm |
Photo Album
Features
- 70KV/2mA, frequency can be increased to 80KHz.
- For X-ray film,digital X-raysensors,and image plate scanners.
- Small and portable,easy to handle,save shipment freight.
- With excellent image quality, portable storage, save more space.
- High frequency and DC international power supply.
- Large-capacity battery, can take 400 exposures after a full charge.
- Warranty: Battery for 1 year, whole unit for 2 years, tube for 5 years.
