R2plus-Mini head LED Turbine
· Ultra mini head,SMD LED tech
· 100 degree angled design head
· 100% zero-retraction system
· 4 points water sprays system
· Water Filtration Check Valve
ON THIS PAGE
- Model name: R2plus
- Technical Parameter
- Photo Album
- Features
- Ultra mini head, strong power,SMD LED tech
- 100° angled head, ergonomic design
- 100% Zero-retraction system
- 4 Points Water Spray
- Anti-leakage CNC head(stainless steel)
- Water Filtration Check Valve
- Imported new & lighter micro E-generator
- Ceramic Bearing with dustproof cover
- Low Noise
Model name: R2plus
Technical Parameter
| Chuck Type | Push button |
| LED Type | SMD Tech,no damage light |
| Bearing Type | Ceramic bearing with cover |
| Power | 19W |
| LED Power | 10,000-16,000LUX |
| Led Voltage | 3-3.4V |
| Head Type | Ultra mini head |
| Bur Size | Φ1.59mm~Φ1.60mm |
| Water Spray | 4-point water spray |
| Air Spray | 4-way air spray |
| Noise | <65dB |
| Body Material | Titanium-caoted, Copper |
| Operating Pressure | 0.22-0.25Mpa |
| RPM | 380,000-420,000min-1 |
| Connector | B2/M4 |
Photo Album
Features

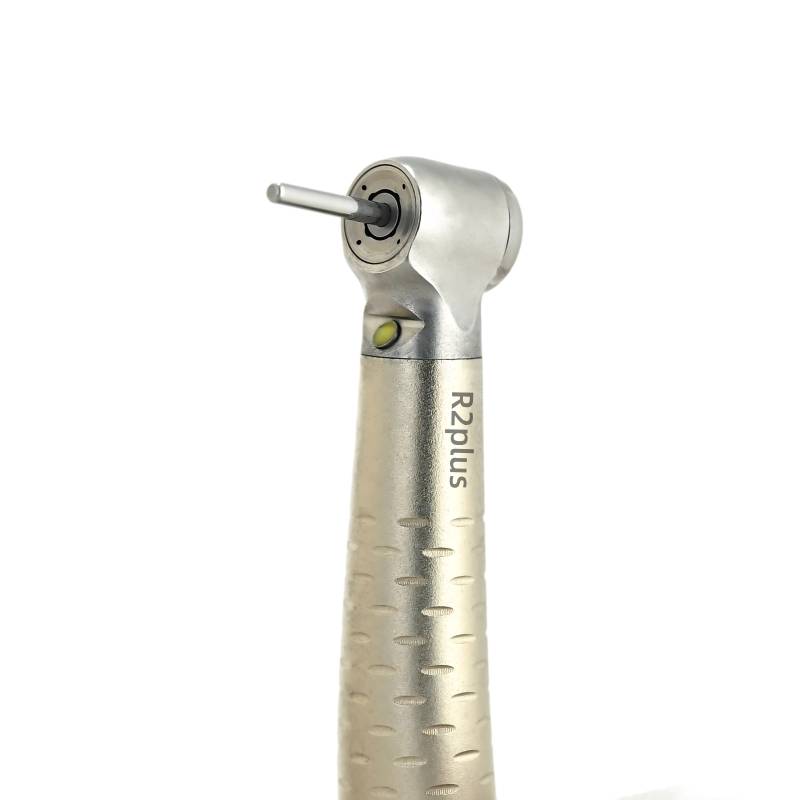

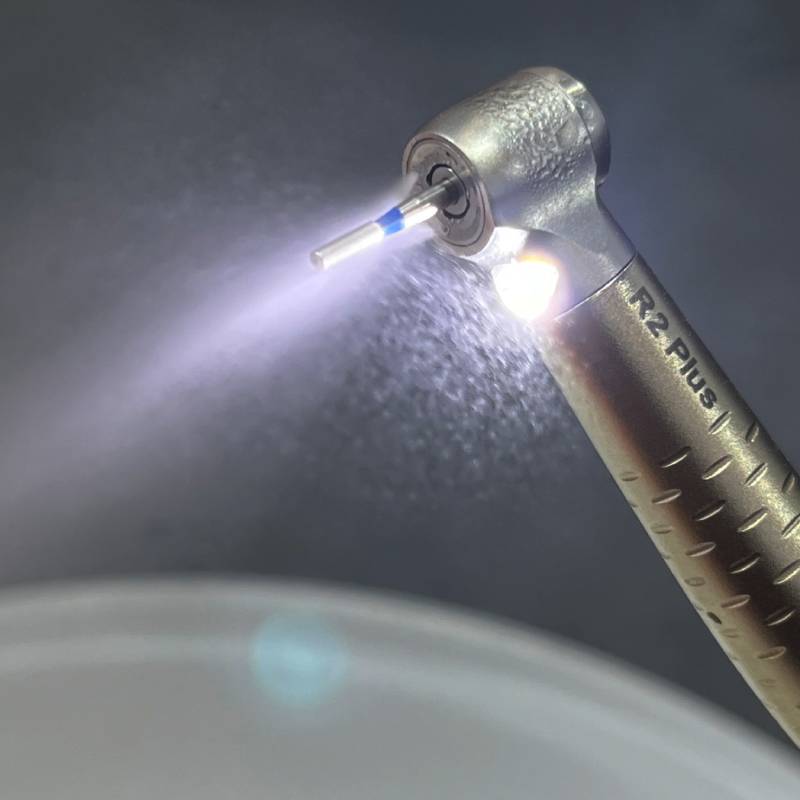

Ultra mini head, strong power,SMD LED tech
Can be used for both child &adults, provides a wider vision.SMD technology LED lights can withstand over 1500 times of high-temperature disinfection without damaging the lights.
100° angled head, ergonomic design
Significantly expand the operational field of vision and reduce the fatigue of the wrist for the dentists who always work for a long time.
100% Zero-retraction system
Prevent cross-infection of blood and other substances.

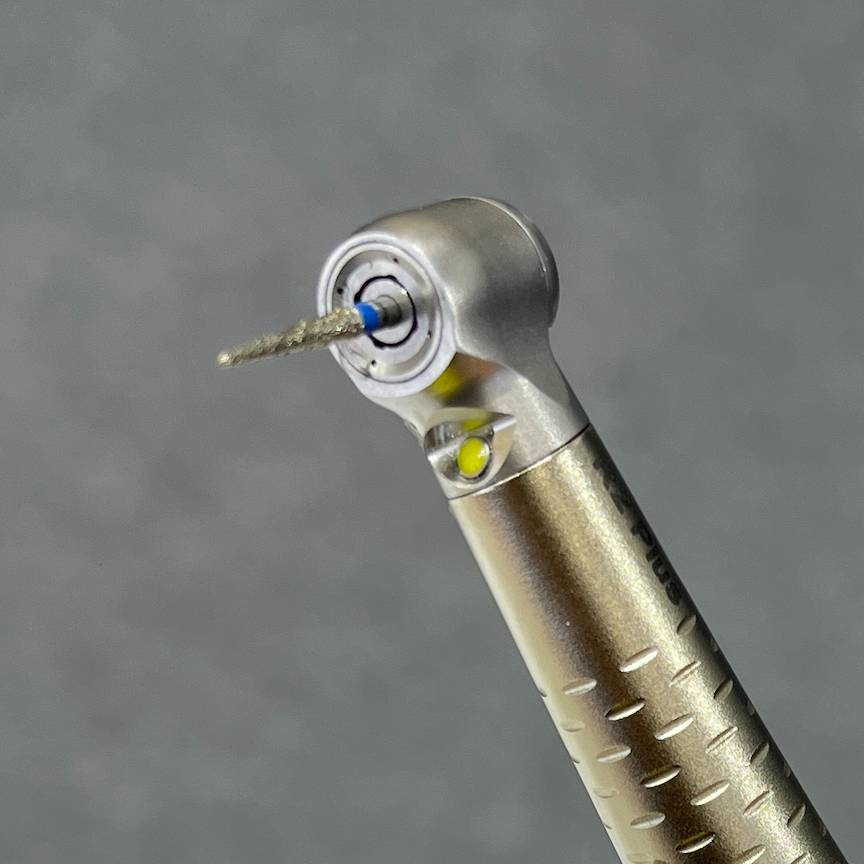

4 Points Water Spray
4 points water spray system with excellent cooling effect, which can quickly cool the heat generated in the treatment, reducing the pain of the patients and helping the dentists to operate smoothly.

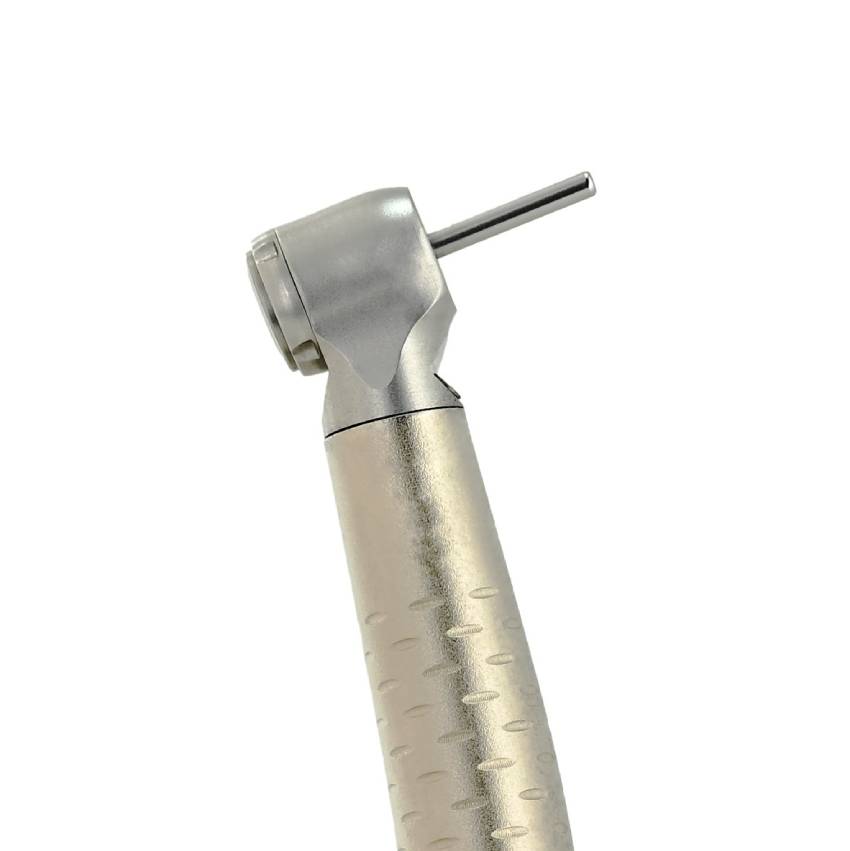

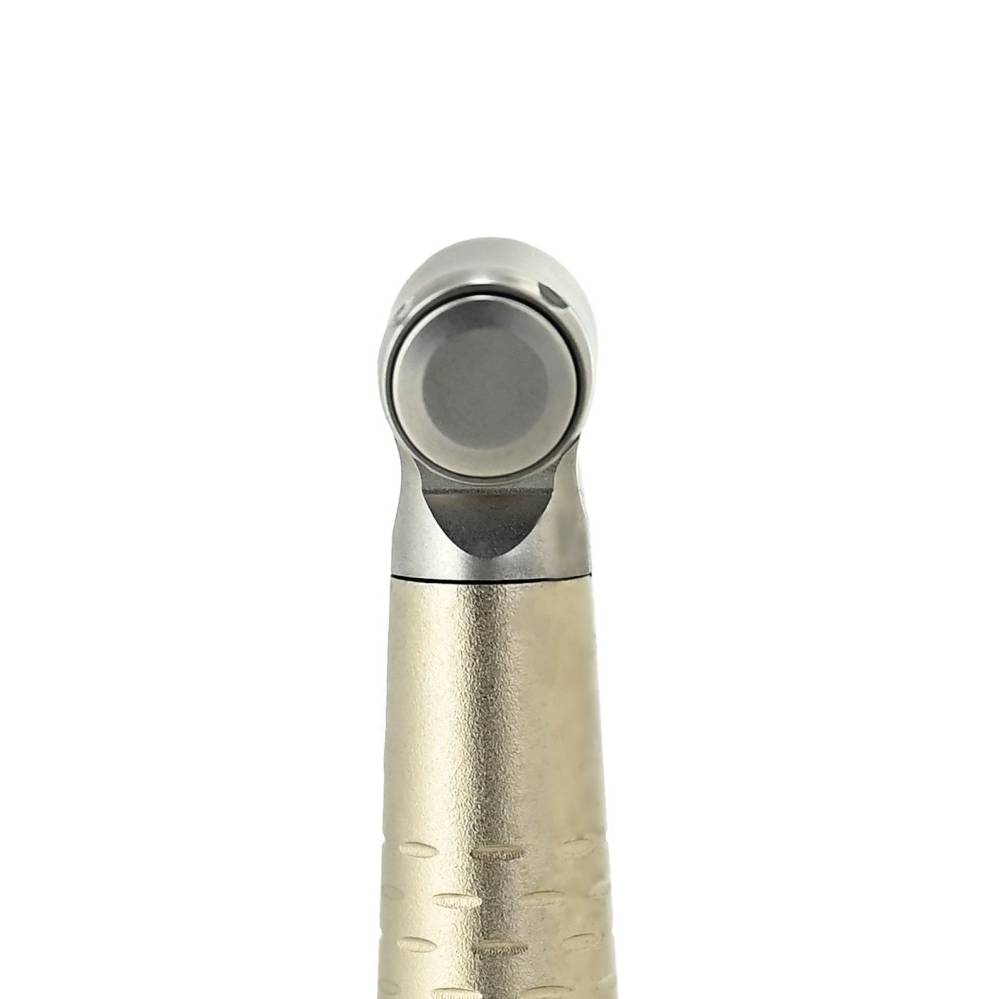

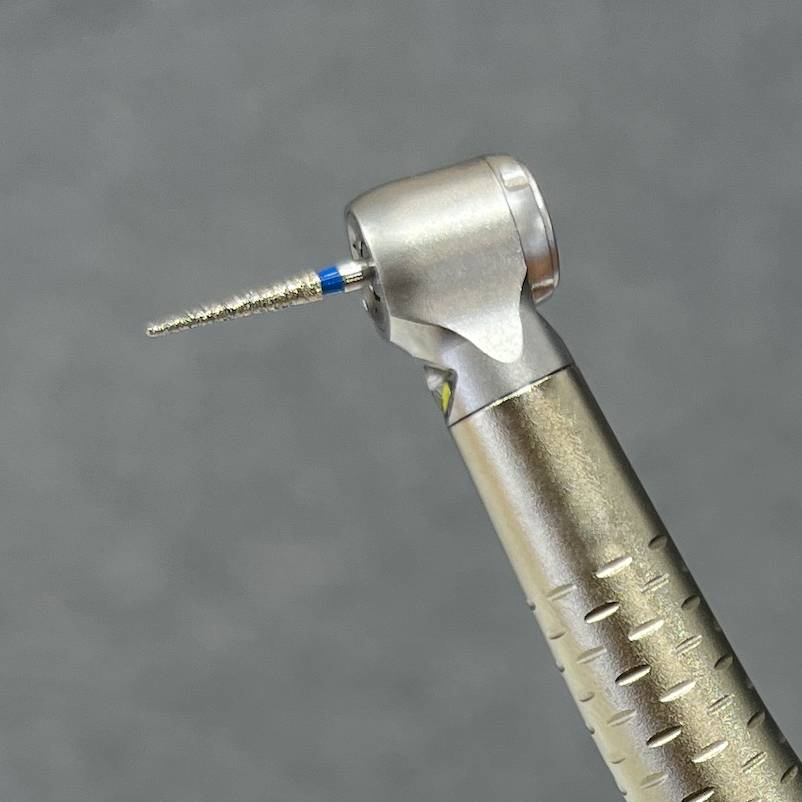

Anti-leakage CNC head(stainless steel)
Use an integrated head to avoid water leaking onto the head.Made of stainless steel,which has high hardness and is not easy to deform even when dropped on the ground. This significantly protects the cartridge inside the head.
Water Filtration Check Valve
The unique design of the water filter valve at the end prevents the dental handpiece from blocking water and avoiding bacterial infection.
Imported new & lighter micro E-generator
Lighter weight,no damage under high-temperature disinfection.
Ceramic Bearing with dustproof cover
2.78mm higher support step of bearing, which can prolong the lifespan of the China dental handpiece.Ceramic bearing with cover, dust-proof, for more easier maintain and make the lifespan longer.
Low Noise
Noise less than 65dB, which can reduce the fear of patients and provide a humanized experience.
