R6-Ring LED Turbine
· Ring shadowless LED
· 100 degree angled head
· 100% Zero-retraction
· 1 second emergency stop
· Built-in filter check valve
· Imported micro E-generator
· Anti-leakage CNC design head
ON THIS PAGE
Model: R6. Shadow-Free Visibility. Ergonomic design.
The R6 Ring LED Dental Turbine is a reliable high‑speed handpiece for distributors and clinics, boasting ring LED lighting, ceramic bearings, 100° angled head,zero‑retraction system,quick-stop system, 4 water sprays,and up to 390,000 RPM rotation. It delivers enhanced illumination, smooth cutting, low maintenance, better visibility and stable performance for general and restorative dentistry.
The R6 Ring LED Dental Turbine is recommended for:
- Dental distributors seeking a new mid-to-high-end LED turbine model
- OEM brands/private-label partners needing to expand their brands
- Buyers seeking mid-range performance with lower maintenance turbines
- Clinics upgrading performance and comfort from standard LED turbines
- Markets requiring zero-retraction system and shadowless LED turbines
Why Ring LED Matters？
Traditional single-point LED turbines often create shadows during posterior procedures.
The R6 uses a ring LED illumination design to provide more uniform lighting around the bur area, helping improve visibility during crown preparation, cavity work, and restorative treatment.
The internationally renowned brands of dental handpieces and premium LED turbine manufacturers also position ring LED systems as a major clinical advantage.
Benefits of Ring LED 360° Illumination
| Feature | R6 Ring LED | Others Single LED |
| Visibility in posterior area | Better | Limited |
| Shadow reduction | Excellent | Moderate |
| Light distribution | 360° uniform illumination | Directional |
| Clinical comfort | Higher | Standard |
| Precision during preparation | Improved | Standard |
Photo Album
Technical Parameter
| Head Angle | 100° ergonomic design |
| LED Type | Ring LED,shadow-less light |
| Water Spray | 4 points water spray |
| Head Material | Stainless steel |
| Body Material | Titanium plating |
| Bearing Type | Ceramic bearing with cover |
| Power | 20W |
| LED Power | 10,000-18,000LUX |
| Head Type | Standard head |

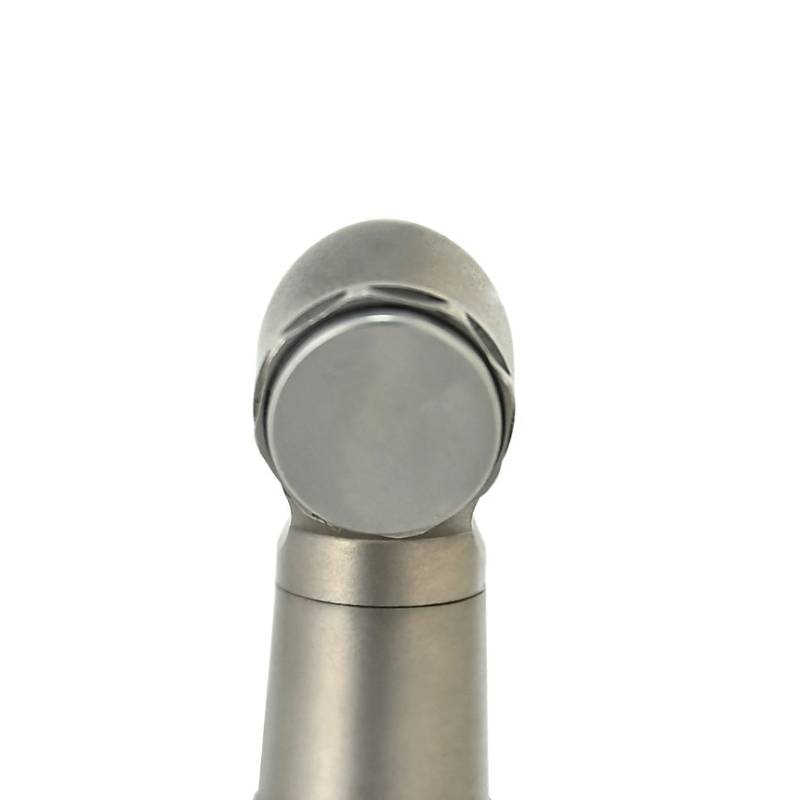

| Chuck Type | Push button |
| Bur Size | Φ1.59mm~Φ1.60mm |
| Noise | <65dB |
| Operating Pressure | 0.25-0.3Mpa |
| RPM | 350,000-390,000min-1 |
| Connector | B2/M4 |
Designed for Ergonomic & Precise Clinical Performance

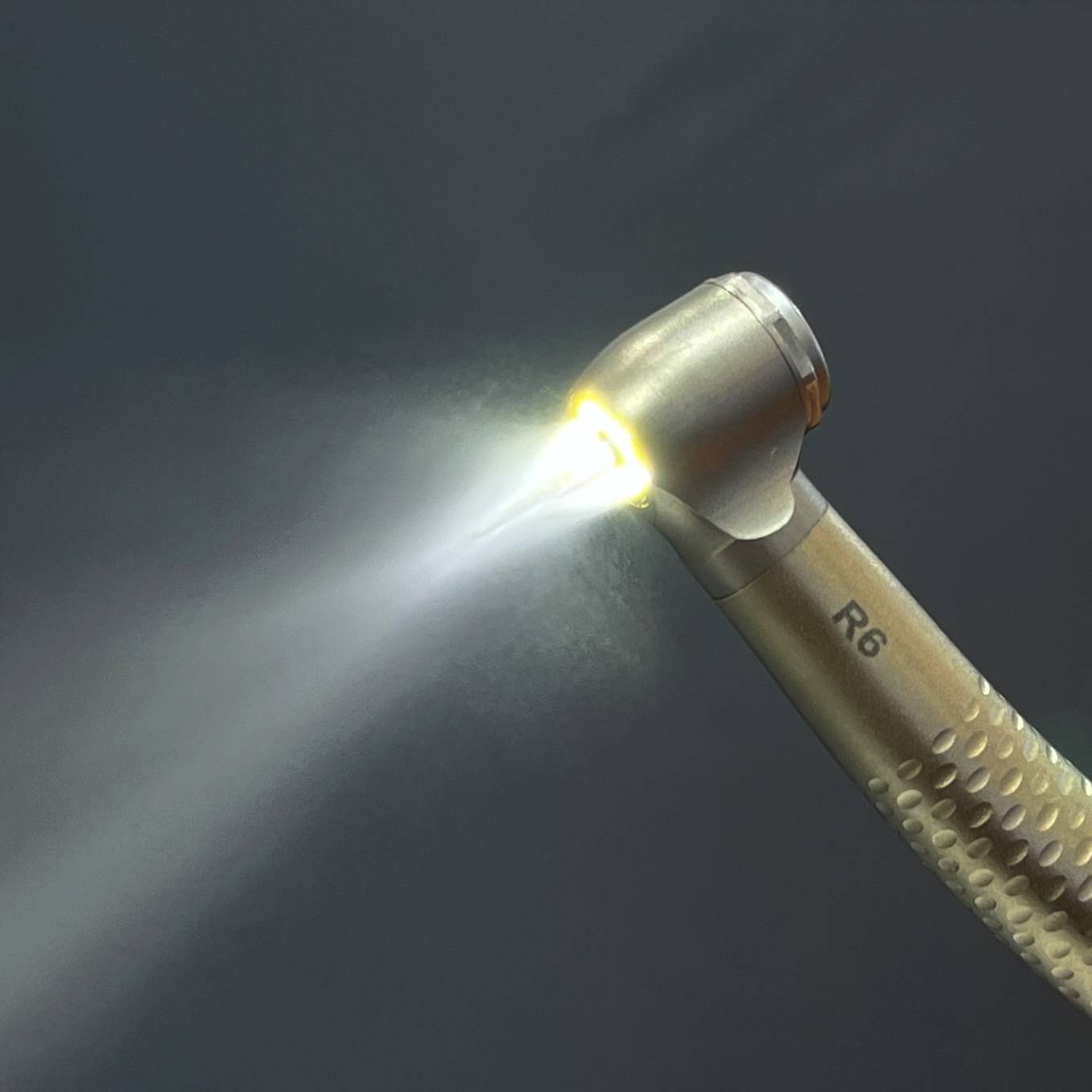

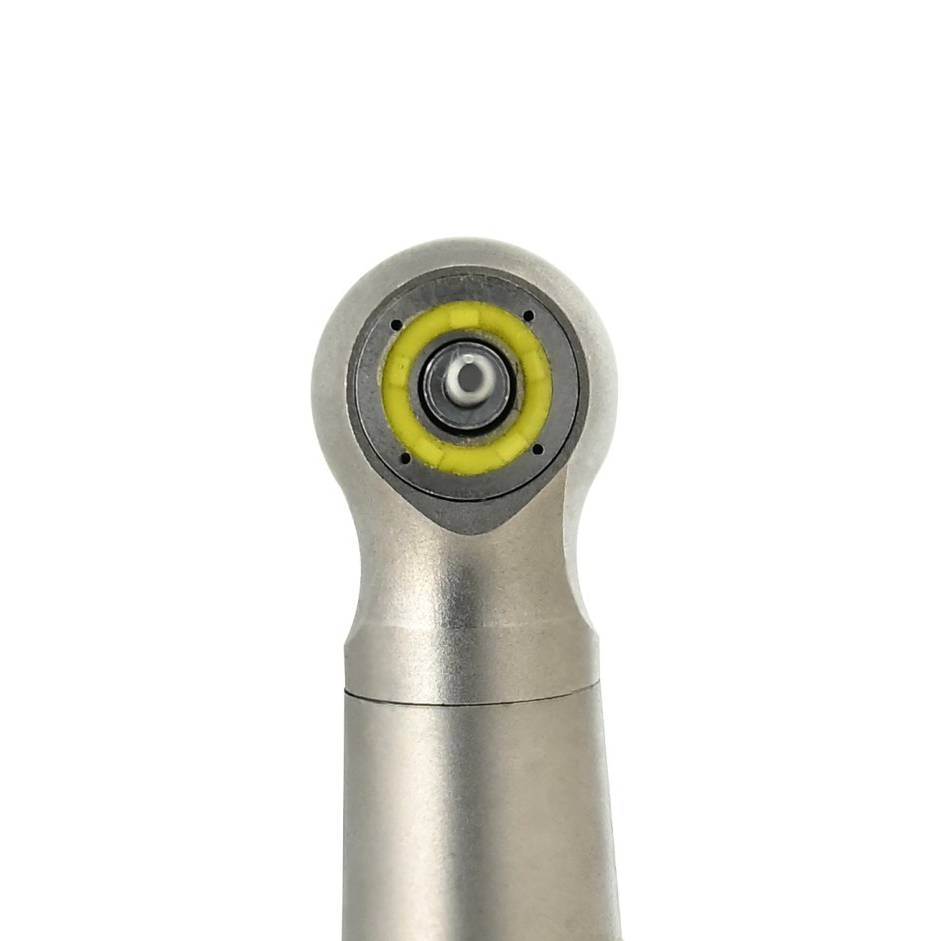

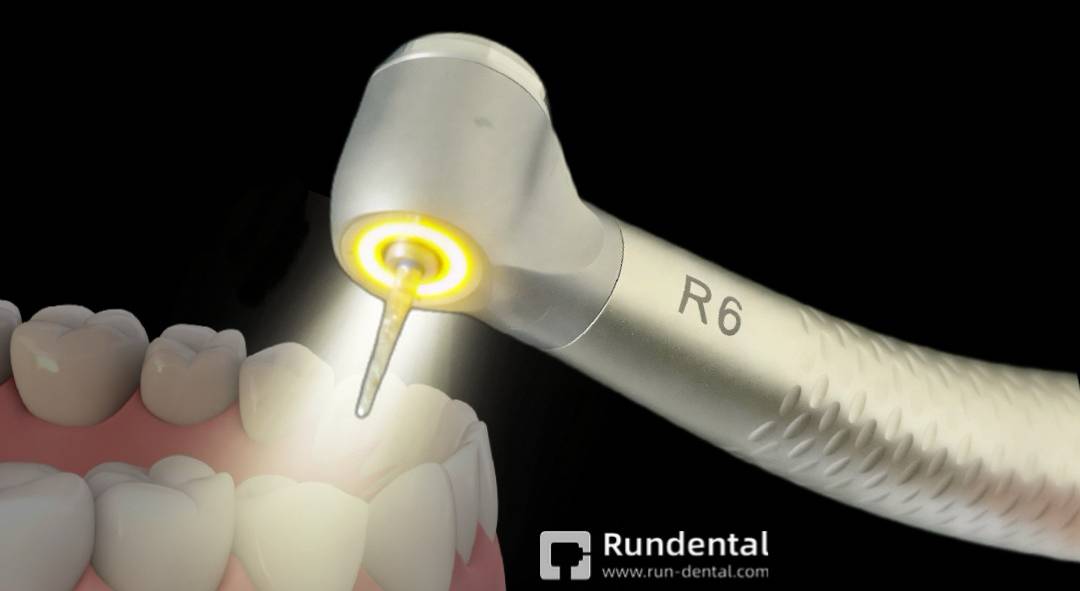

Ring LED Shadowless Light with SMD LED Tech
The R6’s 360° uniform illumination system provides dentists with a shadow-free working environment and reduce operational errors.SMD technology LED lights can withstand over 1500 times of high-temperature disinfection without damaging the lights.

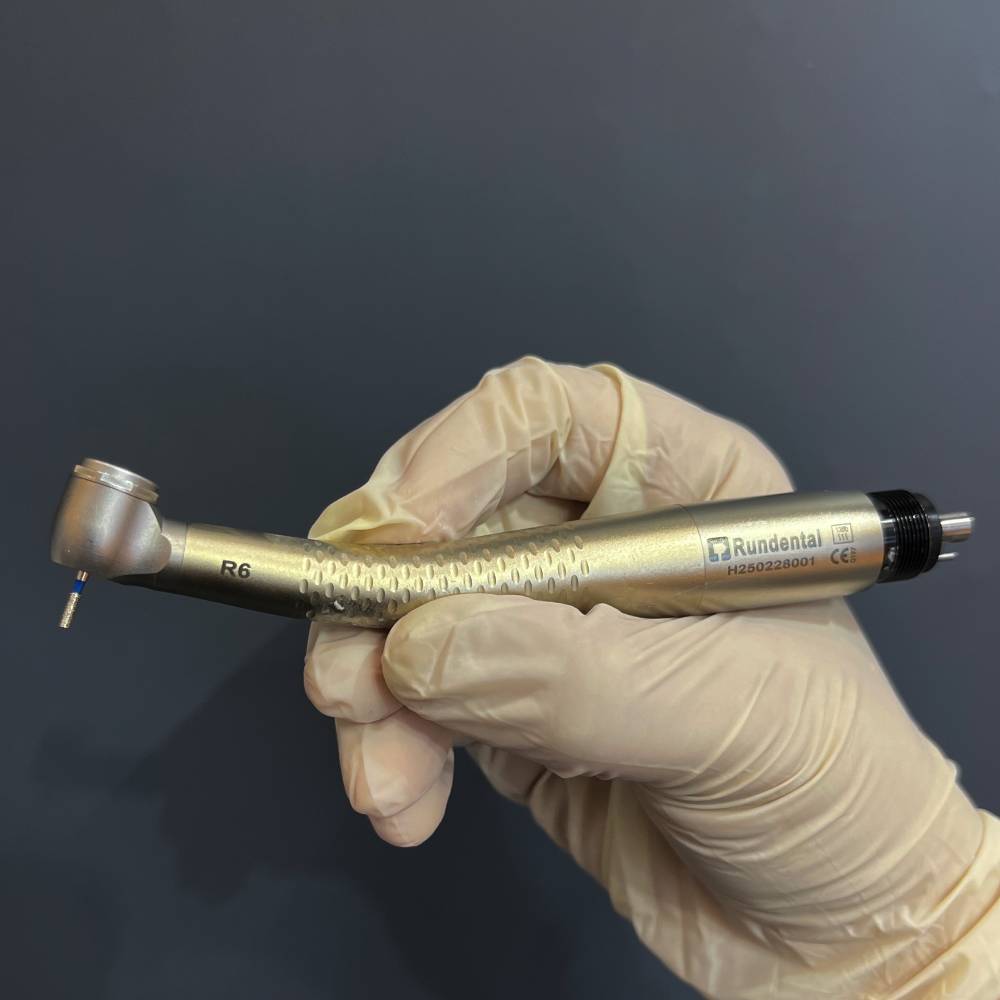

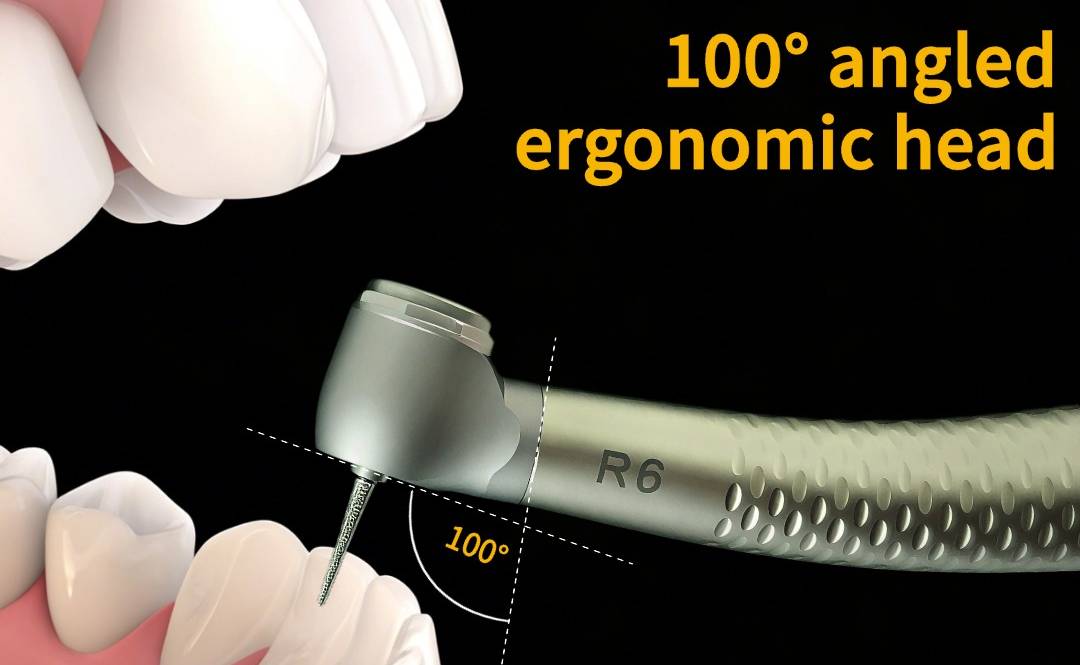

100° Angled Head, Ergonomic Design
Considering the physiological curves of the oral cavity, the 100° angled head enables easier access and high-torque cutting for efficient treatment in the oral cavity.Significantly expand the operational field of vision and reduce the fatigue of the wrist due to prolonged work.

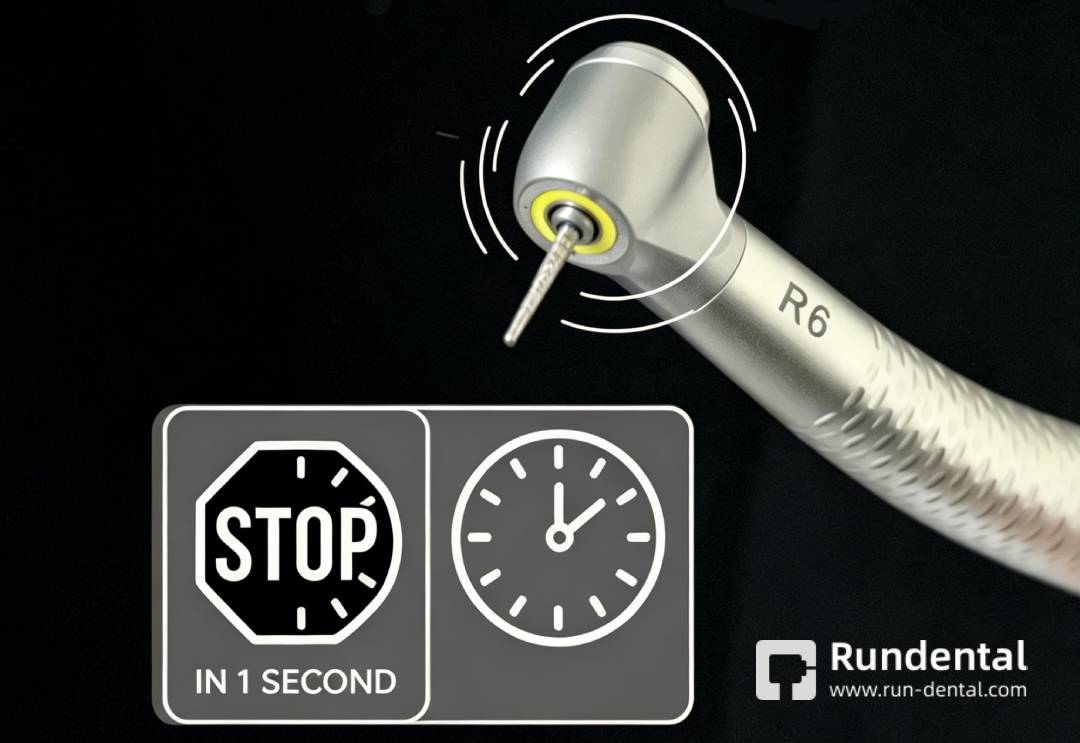

1 Second Emergency Stop
Stop immediately in one second,avoid damaging the patient’s oral soft tissues due to the drill’s inertia.Reduce the risk of errors during the operation.

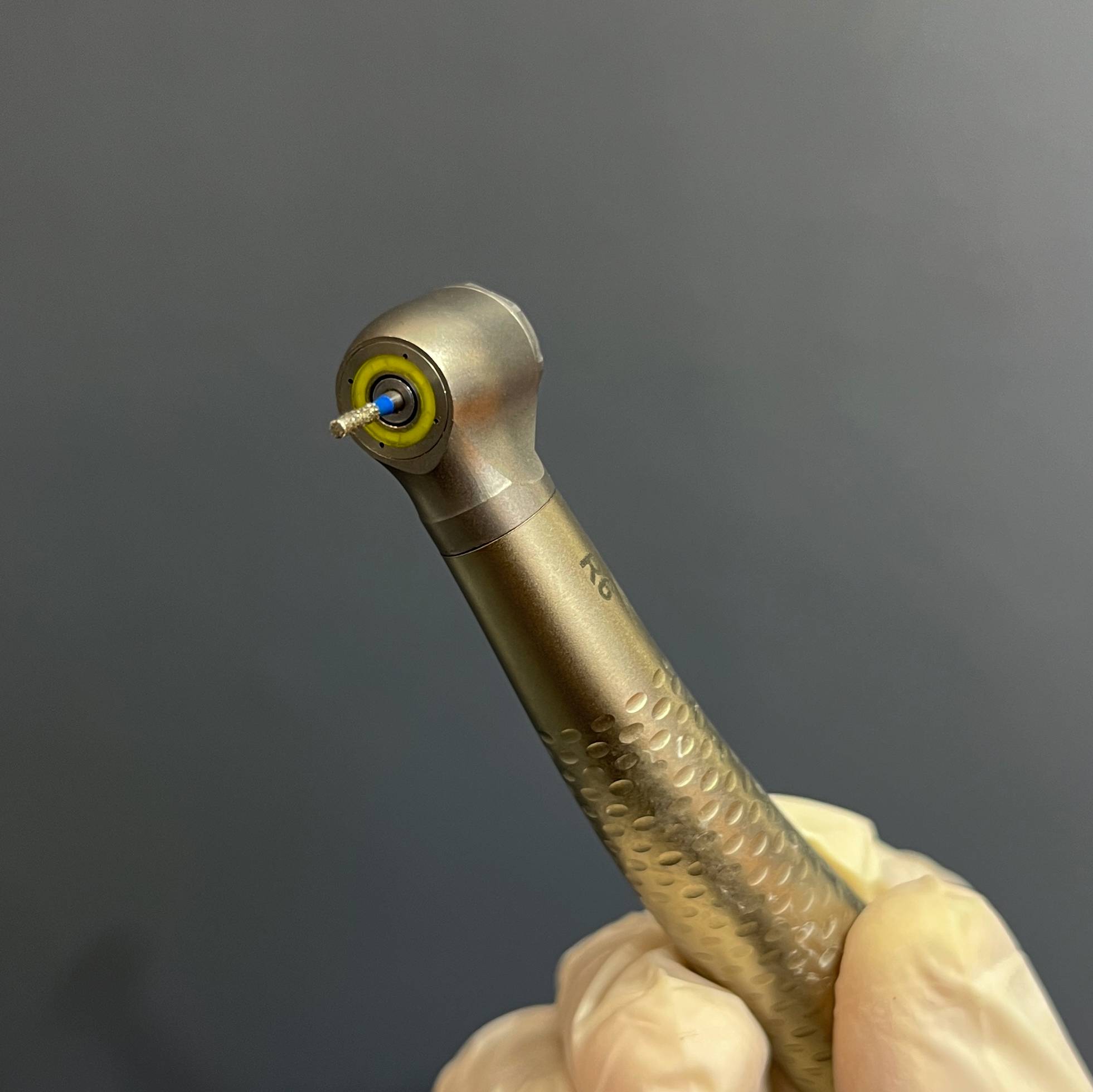

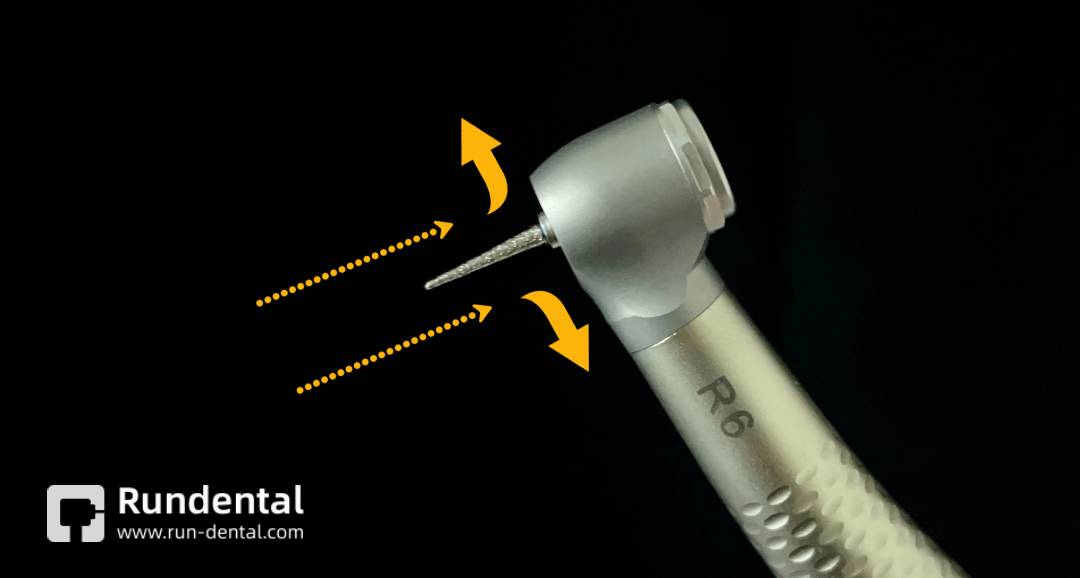

Zero-retraction Clean Head System
Effectively eliminates back‑suction of oral secretions, blood and contaminants, significantly reducing the risk of clinical cross‑infection for enhanced hygiene safety.

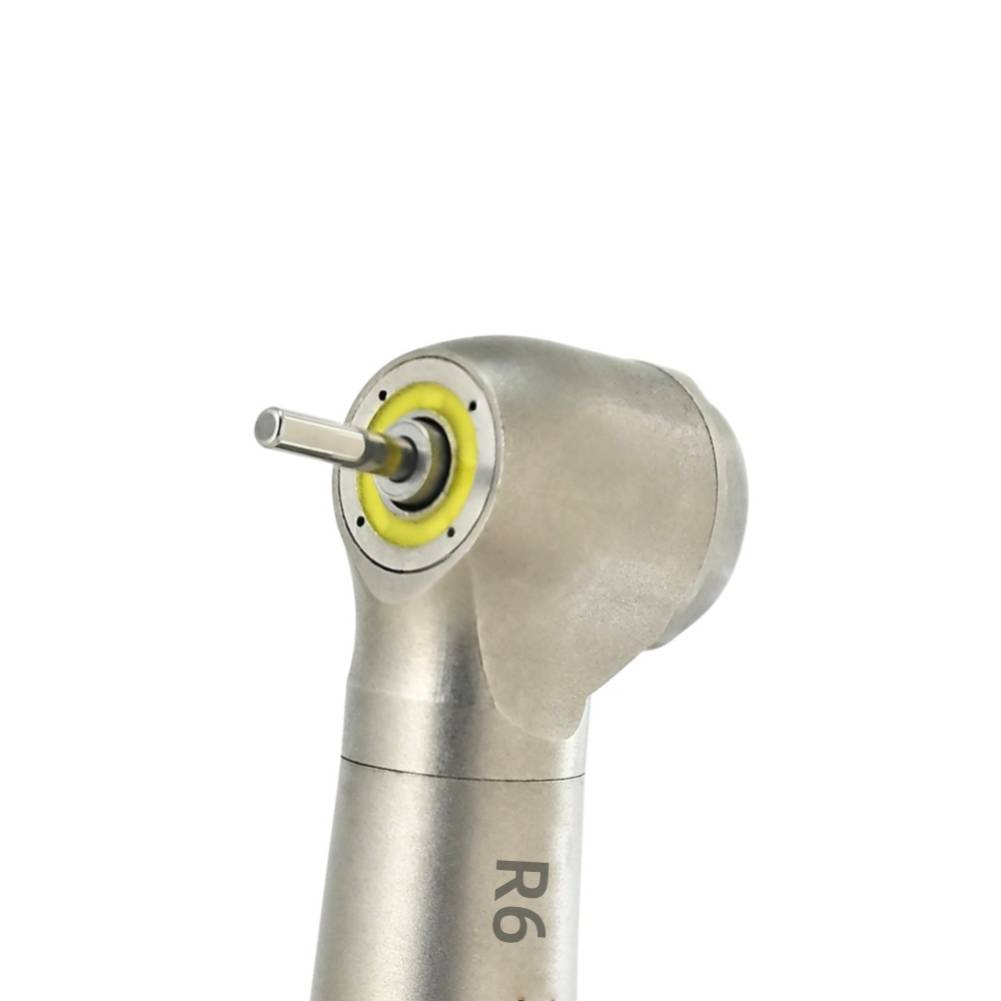

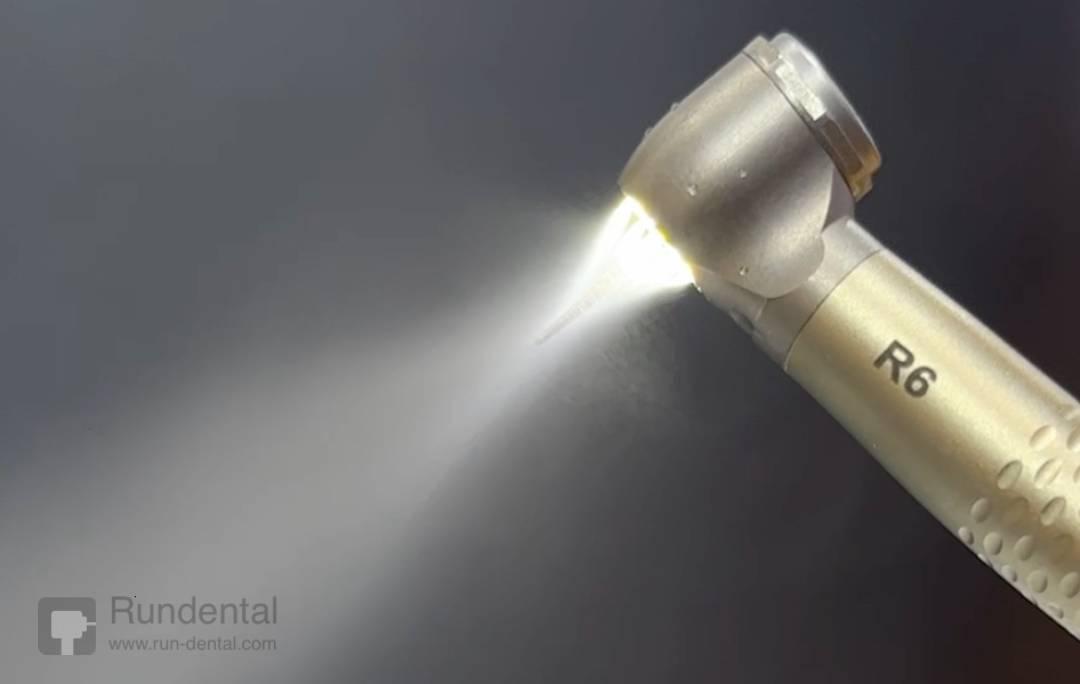

4 Points Water Spray,Efficient Cooling System
4 points water spray system can help:
- Reduce overheating quickly
- Improve patient’s comfort
- Improve cutting efficiency
- Extend cartridge lifespan
Premium LED turbine systems commonly highlight multi-spray cooling as a major performance feature.
Anti-leakage CNC Head(Made of Stainless Steel)
Use an integrated head to avoid water leaking onto the head.Made of stainless steel,which has high hardness and is not easy to deform even when dropped on the ground. This significantly protects the cartridge inside the head.

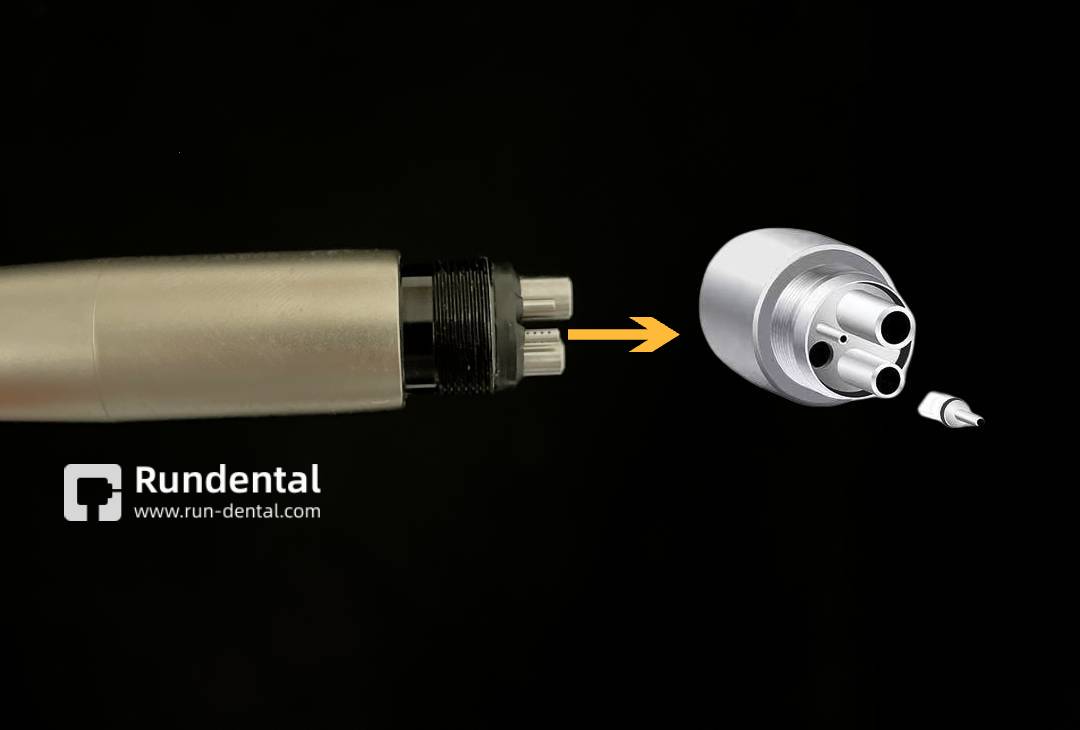

Water Filtration Check Valve
The unique design of the water filter valve at the end prevents the dental handpiece from blocking water and avoiding bacterial infection.
Imported New & Lighter Micro E-generator
Adopting imported premium components, this upgraded micro e‑generator features a lightweight design while maintaining stable performance, and remains intact without structural damage under high‑temperature sterilization.
Top Quality Ceramic Bearing with Dustproof Cover
2.78mm higher support step of bearing, which can prolong the lifespan of the China dental handpiece.Ceramic bearing with cover, dust-proof, for more easier maintain and make the lifespan longer.
Low Vibration,Low Noise
Low vibration is achieved through precision dynamic balancing of the rotor, high-tolerance silent bearings, a perfectly symmetrical impeller, strict coaxiality of the handpiece head, and an optimized air channel design that prevents turbulence and axial/radial shaking during high-speed rotation.
Quality Control & Testing
Every R6 dental turbine undergoes:
- Rotation speed testing
- Water and air atomization inspection
- Cartridge performance inspection
- Noise Testing
- Air leakage testing
- Lifetime Testing
- Assembly QC process
- Dynamic balance inspection
- Sterilization resistance testing
Distributor & OEM Support
- Brand agency and exclusive agency development
- OEM logo engraving & customized packaging
- Support new products design and development
- Support sample test and trial order at low MOQ
- On-time, quality-passed bulk order production
- Support spare parts,repair tools and maintenance skills
- Support responsive & comprehensive export documents
FAQ
Q: What is the advantage of ring LED over standard LED?
A: Ring LED systems provide more uniform illumination and reduce shadows around the preparation area.
Q: What is the benefits of 100° angled head on R6?
A: Compared with traditional 90° heads, the optimized 100° head enables superior access to posterior molar regions. It delivers easier entry and high‑torque cutting performance for efficient intraoral treatment. Meanwhile, it remarkably broadens the operative visual field and alleviates wrist fatigue caused by long‑term clinical operation.
Q: Is zero-retraction included?
A: Yes. The turbine includes a zero-retraction system to help reduce cross-contamination risk.
Q: Does this turbine support OEM branding?
A: Yes. OEM logo engraving and customized packaging are available.
Q: Is the R6 compatible with NSK coupling?
A: Yes. NSK-compatible versions are available. KaVo and M4 options can also be supported.
Q: What bearing system is used?
A: The R6 uses ceramic bearings which is the top 1 quality in China.Imported Japanese bearings and German bearings are optional.
Q: What procedures is this turbine suitable for?
A: General restorative procedures, crown preparation, cavity preparation, and routine clinical treatments.
Q: Can the turbine be autoclaved?
A: Yes. The R6 is fully autoclavable.After removing any residue, place the R6 turbine in a sterilization pouch and sterilize it in a medical autoclave at 134°C for 15–20 minutes.
Q: What markets is this model suitable for?
A: This model is suitable for distributors targeting mid-range and professional dental markets.
